Basic Specifications
Jam Signal Type：
Full Bands Mobile Phone 5GLTE 4G/3G/2G +WiFi2.4G/5.8G+ GPSL1-L5 +Walkie-Talkie UHF/VHF+ Remote Control 433/315/868
Output Power：Total 45W，1-3W each band
Jam Radius：2-40meters
Power Supply：AC110 or 220V to DC12V

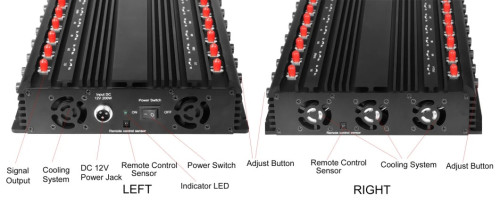

Cooling System：High efficiency aluminum alloy radiator, Build-in 5 cooling fan
Working Time：Not-stop Working
Product Size：450x 238x 60 mm（not Include Antenna）
Product Weight: appr.8kg

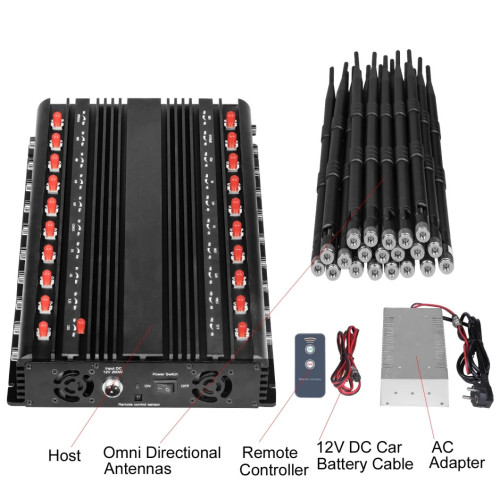

Package Contents：Jammer Host x 1, AC adapter x 1,antenna x20,Car storage battery cable x1, Infrared Remote Control x1
Product description:

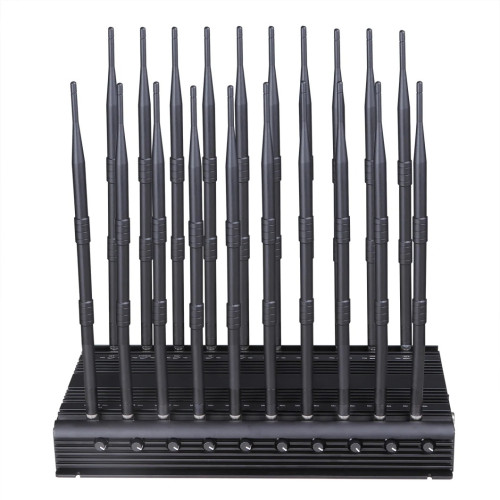

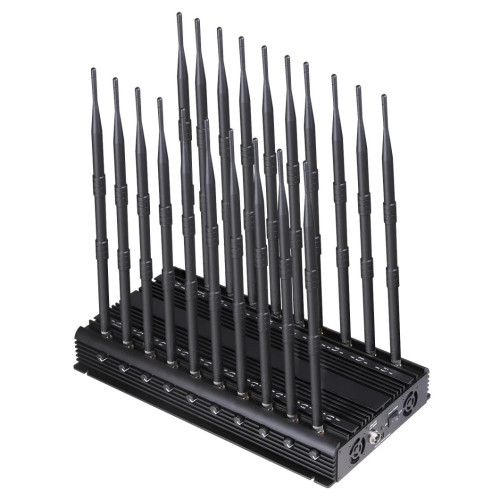

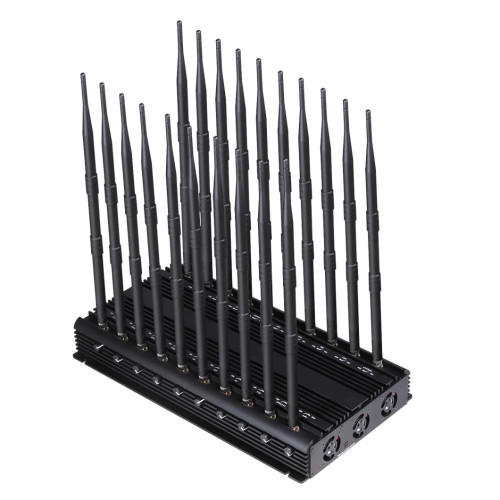

This is the latest designed with 20 Antennas all-in-one for mobile phone 5GLTE GSM 3G 4GLTE signals which bring us a strong jamming ability. And it can not only cut off all 5G 3G 4G mobile phone signals, but also jam Wi-Fi2.4G/5GHz GPS LOJACK, RF 315 MHz 433MHz , VHF UHF Walkie-Talkie & Wireless Headset/Microphone signals. Full bands jammer is power full to blocks all the signals, Jamming frequencies the jamming radius up to 40meters, .It great for school classroom avoid exam cheat and oil/gas station keep in secure.
Advantages:
1:All in one with 20 chancel design, Customized for special frequency range
2:High output power, Total up to: 45W , jamming up to 40m (Still depends on the strength signal in given area)
3:External Omni-directional antennas all the TX frequency covered down link only
4:With Car storage battery Charger DC12V can be used in car
5:Built-in good cooling system inside, Working non-stopped
6:Can adjust or turn off any single band without influencing the other bands operation
7:Independent module design with frequency source of each channel, easy maintenance (if have any damaged frequency band, replace with new PCB directly, no need for professional equipment such as frequency analyzer)
8:2-5meters with Infrared Remote Control Turn ON /OFF Power
OEM Customized Service
Silkscreen OEM service can be offered
|
Key technical specifications: NT-CJ20 |
|||
|
Channel |
Output port |
Frequency range |
Average out-putting power |
|
1 |
CDMA/RC868 |
850-894MHz |
35dbm / 3W |
|
2 |
GSM/LORA |
900-960MHZ |
35dbm / 3W |
|
3 |
DCS/PCS |
1805-1990MHZ |
33dbm / 2W |
|
4 |
3G, UMTS |
2110-2180MHZ |
33dbm / 2W |
|
5 |
4G700 |
700-803 or 758-821MHZ |
35dbm / 3W |
|
6 |
4G2600 |
2496-2690MHZ |
30dbm / 1W |
|
7 |
4G1700 |
1710-1780MHZ |
33dbm / 2W |
|
8 |
5G 600 or 5G1400 |
617-675 or 1427-1518MHZ |
35dbm / 3W |
|
9 |
5G 3.5G |
3400-3600MHZ |
30dbm / 1W |
|
10 |
5G 3.7G |
3600-3800MHZ |
30dbm / 1W |
|
11 |
WIFI 2.4G 11.b, g/4G2300 |
2300-2500MHZ |
30dbm / 1W |
|
12 |
WIFI 5.2G 11.a |
4900-5500MHZ |
30dbm / 1W |
|
13 |
WIFI 5.8G 11.a |
5500-5900MHZ |
30dbm / 1W |
|
14 |
GPS: L1 + Glonass L1 |
1570-1580Mhz |
33dbm / 2W |
|
15 |
GPSL2+L5 + Glonass L2 |
1170-1280MHZ |
33dbm / 2W |
|
16 |
GPSL3+L4 |
1370-1390MHZ |
33dbm / 2W |
|
17 |
Lojack Car Tracking |
167-175MHZ |
35dbm / 3W |
|
18 |
VHF |
135-175Mhz |
35dbm / 3W |
|
19 |
UHF/RC433 |
400-470MHZ |
35dbm / 3W |
|
20 |
RC315 |
315MHZ |
35dbm / 3W |
|
Power supply: AC adapter 50 to 60Hz, (110 or 220V AC-12V DC) Car storage battery Charger DC12V |
|||
|
Dimensions: (length ,width, height) 450x 238x 60mm（not Include Antenna） |
|||
|
Packing size: 55*44*15cm Net weight: 7kg Gross weight: 8.0kg |
|||
|
Total power:45W |
|||
|
Warranty: one year from delivery date |
|||
It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security
For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument.
