| Output port | Frequency | Average out- |
| putting power | ||
| CDMA | 851-894MHz | 35dBm |
| GSM | 925-960MHz | 35dBm |
| DCS/PCS | 1805-1990MHz | 33dBm |
| 868 | 868MHz | 35dBm |
| 3G | 2110-2170MHz | 30dBm |
| WIFI2.4G | 2400-2500MHz | 30dBm |
| GPSL1 | 1575MHz | 32dBm |
| 4G LTE | 790-826MHz or 725-770MHz | 34dBm |
| 4G WIMAX | 2620-2690MHz or 2345-2400MHz | 30dBm |
| Lojack | 167-175 MHz | 30dBm |
| UHF | 400-470MHz | 34dBm |
| VHF | 135-174MHz | 34dBm |
| GPSL2-L5 | 1170-1230MHz | 32dBm |
| GPSL3-L4 | 1370-1390MHz | 32dBm |
| 315 | 315 MHz | 34dBm |
| 433 | 433MHz | 34dBm |
| 5.2G | 5100-5600MHz | 30dBm |
| 5.8G | 5600-5900MHz | 30dBm |
| Power supply: AC adapter (AC110V220V-DC12V) | ||
| Shielding Radius: (30-60) meters@-75dBm still depends on the strength signal in given area. The shielding radius of VHF/UHF signal should be lesser than cell phone signal. | ||
| Dimension: (width, height, length) 450x240x60mm Net weight: 7kg | ||
| You can select 18 of above frequency bands as your needed, in default we will send by country different | ||
Advantages:

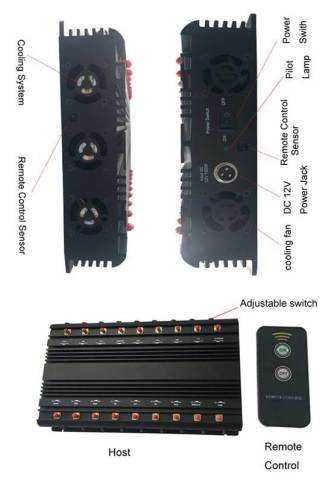

All in one with 18 bands frequency,including 5G With remote control,Remote switching is possible Good cooling system with 5 cooling fans inside Low noise Can adjust or turn off any single band without influencing the other bands operation Work non-stopped Stable capability Could be used in car directly, with car charger
Total output power: 48W
Full set weight: 7.5kg
Power supply: AC 110V/220V and 12V cable to car battery
Dimension: 450mm x 240mm x 60mm
