Multi-Band 22 Antennas All-in-One 5G Cell Phone Signal Blocker All Frequencies Signal Jammer with Remote Control
Multi-Band 22 Antennas All-in-One 5G Cell Phone Signal Blocker All Frequencies Signal Jammer with Remote Control Multi-Band 22 Antennas All-in-One 5G Cell Phone Signal Blocker All Frequencies Signal Jammer with Remote Control Multi-Band 22 Antennas All-in-One 5G Cell Phone Signal Blocker All Frequencies Signal Jammer with Remote Control Multi-Band 22 Antennas All-in-One 5G Cell Phone Signal Blocker All Frequencies Signal Jammer with Remote Control Multi-Band 22 Antennas All-in-One 5G Cell Phone Signal Blocker All Frequencies Signal Jammer with Remote Control Multi-Band 22 Antennas All-in-One 5G Cell Phone Signal Blocker All Frequencies Signal Jammer with Remote Control Multi-Band 22 Antennas All-in-One 5G Cell Phone Signal Blocker All Frequencies Signal Jammer with Remote Control Multi-Band 22 Antennas All-in-One 5G Cell Phone Signal Blocker All Frequencies Signal Jammer with Remote Control Multi-Band 22 Antennas All-in-One 5G Cell Phone Signal Blocker All Frequencies Signal Jammer with Remote Control Multi-Band 22 Antennas All-in-One 5G Cell Phone Signal Blocker All Frequencies Signal Jammer with Remote Control Multi-Band 22 Antennas All-in-One 5G Cell Phone Signal Blocker All Frequencies Signal Jammer with Remote Control Multi-Band 22 Antennas All-in-One 5G Cell Phone Signal Blocker All Frequencies Signal Jammer with Remote Control Multi-Band 22 Antennas All-in-One 5G Cell Phone Signal Blocker All Frequencies Signal Jammer with Remote Control Multi-Band 22 Antennas All-in-One 5G Cell Phone Signal Blocker All Frequencies Signal Jammer with Remote Control Multi-Band 22 Antennas All-in-One 5G Cell Phone Signal Blocker All Frequencies Signal Jammer with Remote Control Multi-Band 22 Antennas All-in-One 5G Cell Phone Signal Blocker All Frequencies Signal Jammer with Remote Control Multi-Band 22 Antennas All-in-One 5G Cell Phone Signal Blocker All Frequencies Signal Jammer with Remote Control Multi-Band 22 Antennas All-in-One 5G Cell Phone Signal Blocker All Frequencies Signal Jammer with Remote Control Multi-Band 22 Antennas All-in-One 5G Cell Phone Signal Blocker All Frequencies Signal Jammer with Remote Control Multi-Band 22 Antennas All-in-One 5G Cell Phone Signal Blocker All Frequencies Signal Jammer with Remote Control Multi-Band 22 Antennas All-in-One 5G Cell Phone Signal Blocker All Frequencies Signal Jammer with Remote Control

Multi-Band 22 Antennas All-in-One 5G Cell Phone Signal Blocker All Frequencies Signal Jammer with Remote Control

Item No.: NT-CJ22
Multi-Band 22 Antennas All-in-One 5G Cell Phone Signal Blocker All Frequencies Signal Jammer with Remote Control
Request Quote
Description US Frequency Basic Specifications

Product Information
Name: World First 22 Antennas Wireless Signal Jammer For Full Bands 5GLTE 2G 3G 4G Wi-Fi GPS LOJACK Output Power 42Watt With Infrared Remote Control Turn ON /OFF Power


Key technical specifications: EU
Channel Output port Frequency range Average out-putting power
1 CDMA/RC868 850-894MHz 35dbm / 3W
2 GSM 925-960MHZ 35dbm / 3W
3 DCS 1805-1880MHZ 33dbm / 2W
4 3G 2110-2170MHZ 33dbm / 2W
5 4G800 758-821MHZ 35dbm / 3W
6 4G2600 2570-2690MHZ 30dbm / 1W
7 4G2500 2500-2570MHZ 30dbm / 1W
8 4G2300 2300-2400MHZ 30dbm / 1W
9 5G 1500 1427-1518MHZ 33dbm / 2W
10 5G 3.4G 3300-3600MHZ 30dbm / 1W
11 5G 3.8G 3600-3900MHZ 30dbm / 1W
12 5G 4.0G 3900-4200MHZ 30dbm / 1W
13 WIFI 2.4G 11.b, g 2400-2500MHZ 30dbm / 1W
14 WIFI 5.2G 11.a 4900-5500MHZ 30dbm / 1W
15 WIFI 5.8G 11.a 5500-5900MHZ 30dbm / 1W
16 GPS: L1 + Glonass L1 1570-1580Mhz 33dbm / 2W
17 GPSL2+L5 + Glonass L2 1170-1280MHZ 33dbm / 2W
18 GPSL3+L4 1370-1390MHZ 33dbm / 2W
19 Lojack Car Tracking 167-175MHZ 35dbm / 3W
20 VHF 135-175Mhz 35dbm / 3W
21 UHF/RC433 400-470MHZ 35dbm / 3W
22 RC315 315MHZ 35dbm / 3W
Power supply: AC adapter 50 to 60Hz, (110 or 220V AC-12V DC)     Car storage battery Charger DC12V
Dimensions: (length ,width, height) 450x 238x 60mm(not Include Antenna)
Packing size: 55*44*15cm            Net weight: 7kg          Gross weight: 8.0kg
Total power:42W
Shielding radius: (2-40) meters At -75dBm
Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters
Warranty: one year from delivery date
Key technical specifications: US
Channel Output port Frequency range Average out-putting power
1 CDMA/RC868 850-894MHz 35dbm / 3W
2 GSM/LORA 900-960MHZ 35dbm / 3W
3 DCS/PCS 1805-1990MHZ 33dbm / 2W
4 3G, UMTS 2110-2180MHZ 33dbm / 2W
5 4G700 700-803MHZ 35dbm / 3W
6 4G2600 2496-2690MHZ 30dbm / 1W
7 4G1700 1710-1780MHZ 33dbm / 2W
8 4G2300 2345-2400MHZ 30dbm / 1W
9 5G 600 617-675MHZ 35dbm / 3W
10 5G 3.4G 3300-3600MHZ 30dbm / 1W
11 5G 3.8G 3600-3900MHZ 30dbm / 1W
12 5G 4.0G 3900-4200MHZ 30dbm / 1W
13 WIFI 2.4G 11.b, g 2400-2500MHZ 30dbm / 1W
14 WIFI 5.2G 11.a 4900-5500MHZ 30dbm / 1W
15 WIFI 5.8G 11.a 5500-5900MHZ 30dbm / 1W
16 GPS: L1 + Glonass L1 1570-1580Mhz 33dbm / 2W
17 GPSL2+L5 + Glonass L2 1170-1280MHZ 33dbm / 2W
18 GPSL3+L4 1370-1390MHZ 33dbm / 2W
19 Lojack Car Tracking 167-175MHZ 35dbm / 3W
20 VHF 135-175Mhz 35dbm / 3W
21 UHF/RC433 400-470MHZ 35dbm / 3W
22 RC315 315MHZ 35dbm / 3W
Power supply: AC adapter 50 to 60Hz, (110 or 220V AC-12V DC)     Car storage battery Charger DC12V
Dimensions: (length ,width, height) 450x 238x 60mm(not Include Antenna)
Packing size: 55*44*15cm            Net weight: 7kg          Gross weight: 8.0kg
Total power:45W
Shielding radius: (2-40) meters At -75dBm
Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters
Warranty: one year from delivery date
Jam Signal Type:
Full Bands Mobile Phone 5GLTE 4G/3G/2G +WiFi2.4G/5.8G+ GPSL1-L5 +Walkie-Talkie UHF/VHF+ Remote Control 433/315/868
Output Power:Total 45W,1-3W each band
Jam Radius:2-40meters
Power Supply:AC110 or 220V to DC12V
Cooling System:High efficiency aluminum alloy radiator, Build-in 5 cooling fan
Working Time:Not-stop Working
Product Size:450x 238x 60 mm(not Include Antenna)
Product Weight: appr.8kg

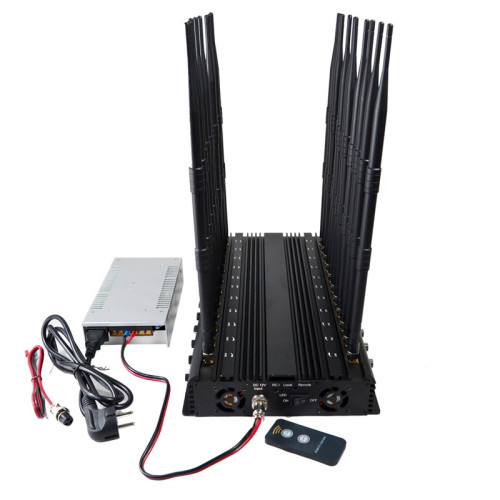

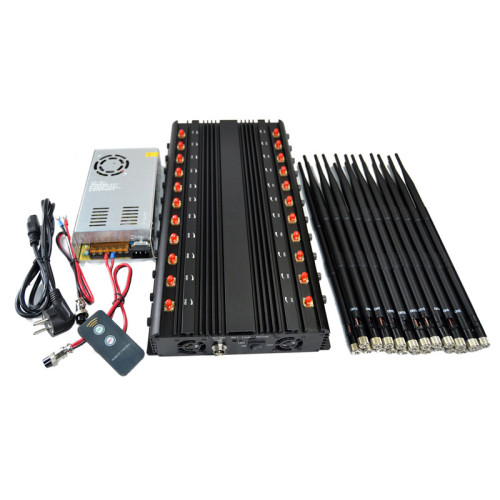

Package Contents:Jammer Host x 1, AC adapter x 1,antenna x22,Car storage battery cable x1, Infrared Remote Control x1

Product description:
This is the latest designed with 22 Antennas all-in-one for mobile phone 5GLTE GSM 3G 4GLTE signals which bring us a strong jamming ability. And it can not only cut off all 5G 3G 4G mobile phone signals, but also jam Wi-Fi2.4G/5GHz GPS LOJACK, RF 315 MHz 433MHz , VHF UHF Walkie-Talkie & Wireless Headset/Microphone signals. Full bands  jammer is power full to blocks all the signals, Jamming frequencies the jamming radius up to 40meters

Advantages:
Full bands 22 chancel design, Customized for special frequency range
High output power, Total up to: 45W , jamming up to 40m (Still depends on the strength signal in given area)
External Omni-directional antennas all the TX frequency covered down link only
With Car storage battery Charger DC12V can be used in car
Built-in good cooling system inside, Working non-stopped
Can adjust or turn off any single band without influencing the other bands operation
2-5meters with Infrared Remote Control Turn ON /OFF Power

OEM Customized Service
Silkscreen OEM service can be offered

Application
It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security
For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument.
