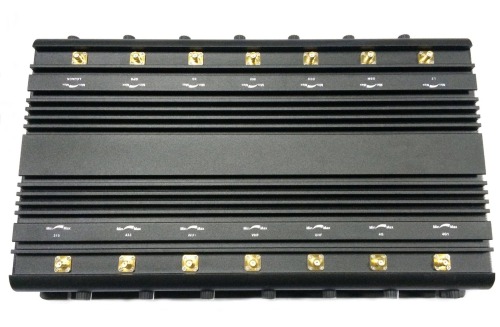

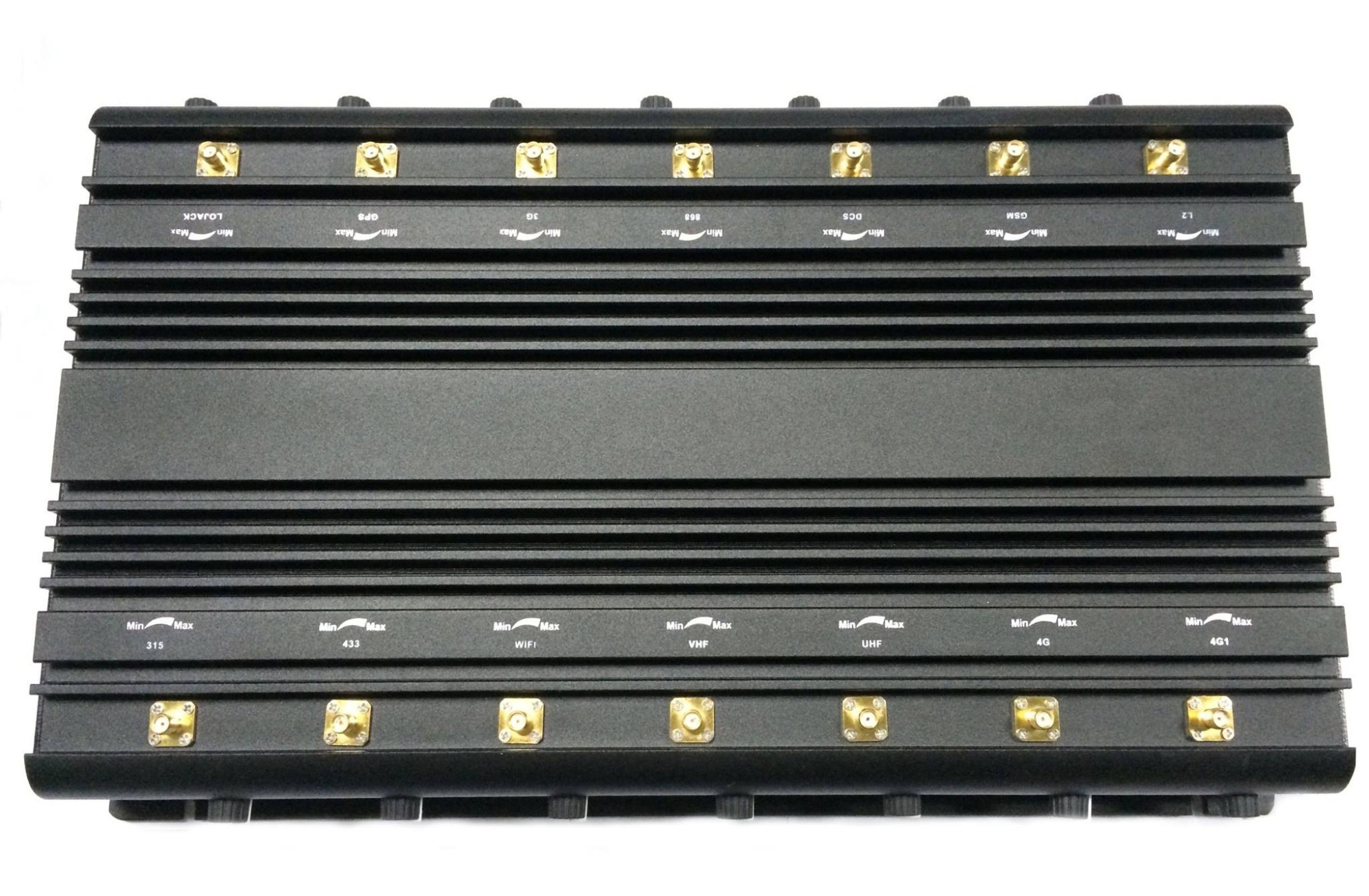

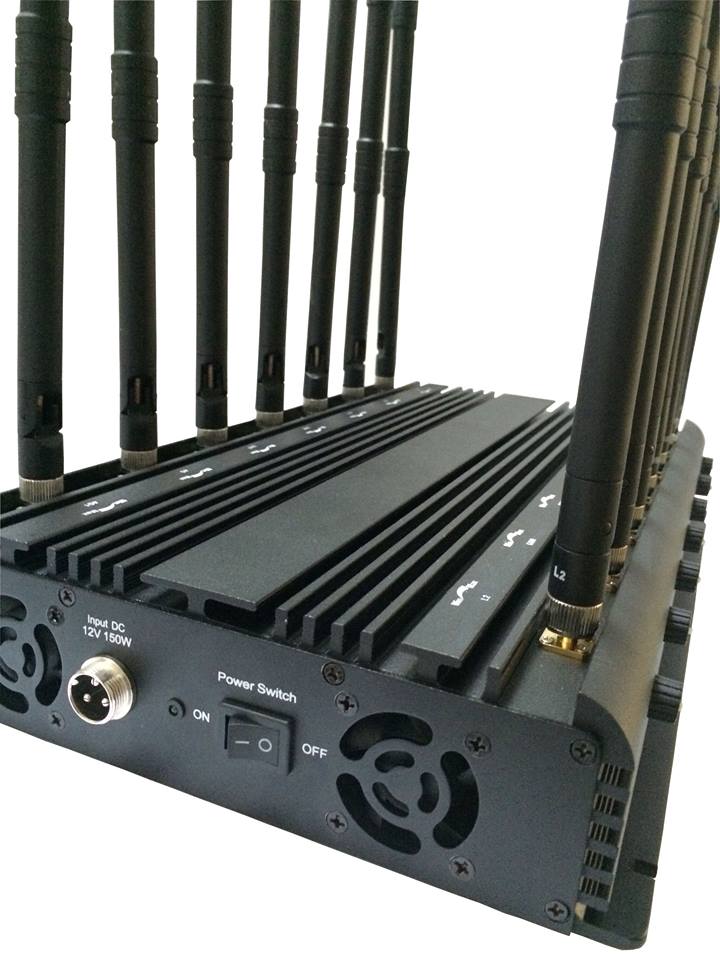

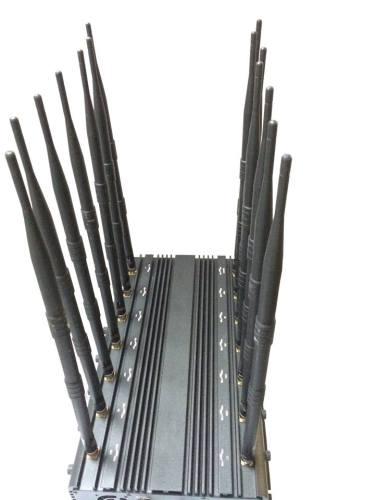

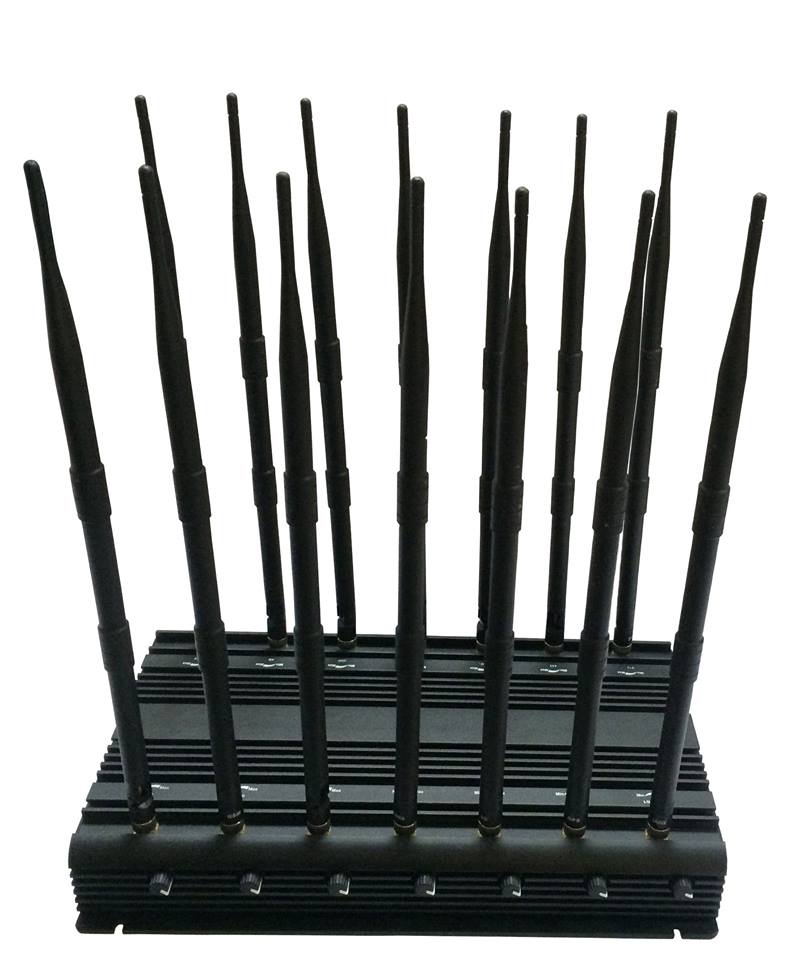

Whole Frequency 14 Antennas WiFi GPS VHF UHF LoJack 3G 4G Signal Jammer Blocker

• Specifications:

• Cover interface standards:

• CDMA 800: 850 to 894MHz

• GSM 900: 925 to 960MHz

• GSM 1800: 1,805 to 1,880MHz (DCS)

• GSM 1900: 1,920 to 1,990MHz (PCS)

• 3G: 2,110 to 2,170MHz

• GPSL1:1570-1580MHz

• GPSL2-L5:1170-1280MHz

• WIFI2.4G:2400-2500MHz

• VHF:135-174MHz

• UHF:400-470MHz

• 4G LTE:725-770MHz

• 4GWIMAX:2345-2400 MHz

• LOJACK or 433 or 315 or 868or WIFI5G/3.6G

•
• You can select 14 of above frequency bands you need in a jammer

• ODM and OEM orders are welcome

• Total output power: 30-35W

• Jamming range: up to 40m, the jamming radius still depends on the strength signal in given area

• External Omni-directional antennas all the TX frequency covered down link only

• Power supply: 50 to 60Hz, 100 to 240V AC

• With AC adapter (AC100-240V-DC12V),

• Dimension: 395x 238 x 60mm

• Full set weight: 6.5kg

• Advantages:

• Good cooling system with cooling fan inside

• Can adjust or turn off any single band without influencing the other bands operation

• Work non-stopped

• Stable capability

• Could be used in car directly,With car charger (Option) .

• Application Area:

• it can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more

• For some locations of special purpose such as hospitals, gas stations and more, Please do field test first to make sure no interference happened to the normal operation of their equipment and instrument

• Warranty:  One year from delivery date.

 Notice:

• Before linking all the antenna, power supply shall not be switched on atfirst. Non taking off antennawhen the mainframe is in the working condition.
•  The jammer shall beinstalled in the position with good ventilation. And large-scale things shall be avoided to ensureto the shielding effect.
•  When use the jammer outdoors,preventing water shall be taken into consideration.
•  Antenna shall be used vertical to the ground.
•   If you used in car,Please make sure the caroutput adapter is DC12V, this machine only can beworking on DC12V,The Min output power of storage battery is 150Watt
