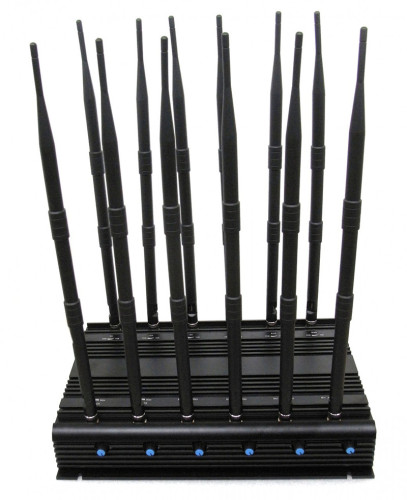

| Key technical specifications: Customized 2G 3G 4G 5G Wi-Fi UHF VHF GPS Signal Jammer NT-CJ12 | |||
| Channel | Output port | Frequency range | Average out-putting power(±1dbm) |
| 1 | CDMA/GSM&LORA | 851-894 /900-960MHz | 35dbm / 3W |
| 2 | DCS/PCS | 1805-1880/1920-2000MHz | 33dbm / 2W |
| 3 | 3G | 2110-2180MHz | 33dbm / 2W |
| 4 | 4GLTE Low | 698-803 or 738-821MHz | 35dbm / 3W |
| 5 | 4GLTE High | 2496-2690 or 2570-2690MHz | 30dbm / 1W |
| 6 | WIFI2.4G/4G2300 | 2400-2485 or 2300-2485MHz | 30dbm / 1W |
| 7 | 5G3300/3500 | 3300-3600MHz | 30dbm / 1W |
| 8 | 5G3700 | 3600-3900MHz | 30dbm / 1W |
| 9 | 5G600 or 5G1500 | 617-698 or 1427-1518MHz | 35dbm / 3W |
| 10 | WIFI5G | 5125-5850MHz | 30dbm / 1W |
| 11 | GPS&Glonass L1 | 1560-1610MHz | 33dbm / 2W |
| 12 | VHF&LOJACK | 135-175MHz | 35dbm / 3W |
| Option | UHF/RC433 | 400-470MHz | 35dbm / 3W |
| RC315 | 310-320MHz | 35dbm / 3W | |
| GPSL2L3L4L5 | 1170-1390MHz | 33dbm / 2W | |
| ODM and OEM orders are welcome, you can select any 12 bands for you require | |||
| Power supply: AC adapter 50 to 60Hz, (AC 110-240V to DC12V) Car storage battery cable DC12V |
|||
| Dimensions: (length ,width, height) 330x 238x 60mm(not Include Antenna) | |||
| Packing size: 49*44*15cm Net weight: 5.5kg Gross weight: 6.0kg |
|||
| Total power:22-36W ,1-3W each band Shielding radius: (2-40) meters ,Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters |
|||
| Warranty: one year from delivery date | |||
