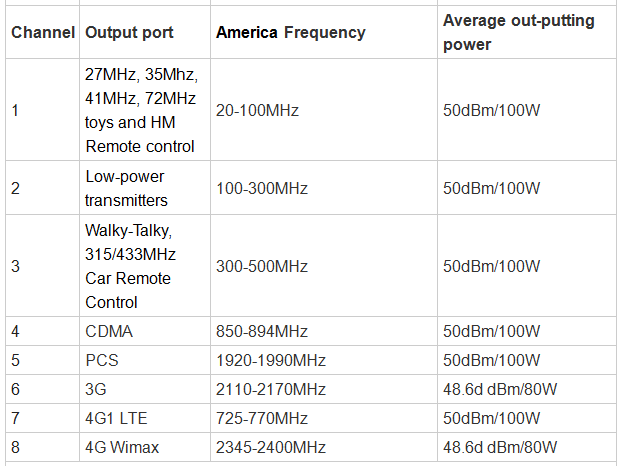

Output Channel: 8 output channels
*Ultra-wideband jamming coverage; continuously jamming wireless signals 20MHz~6000MHz
*Draw-bar box designed for portability and easy moving;

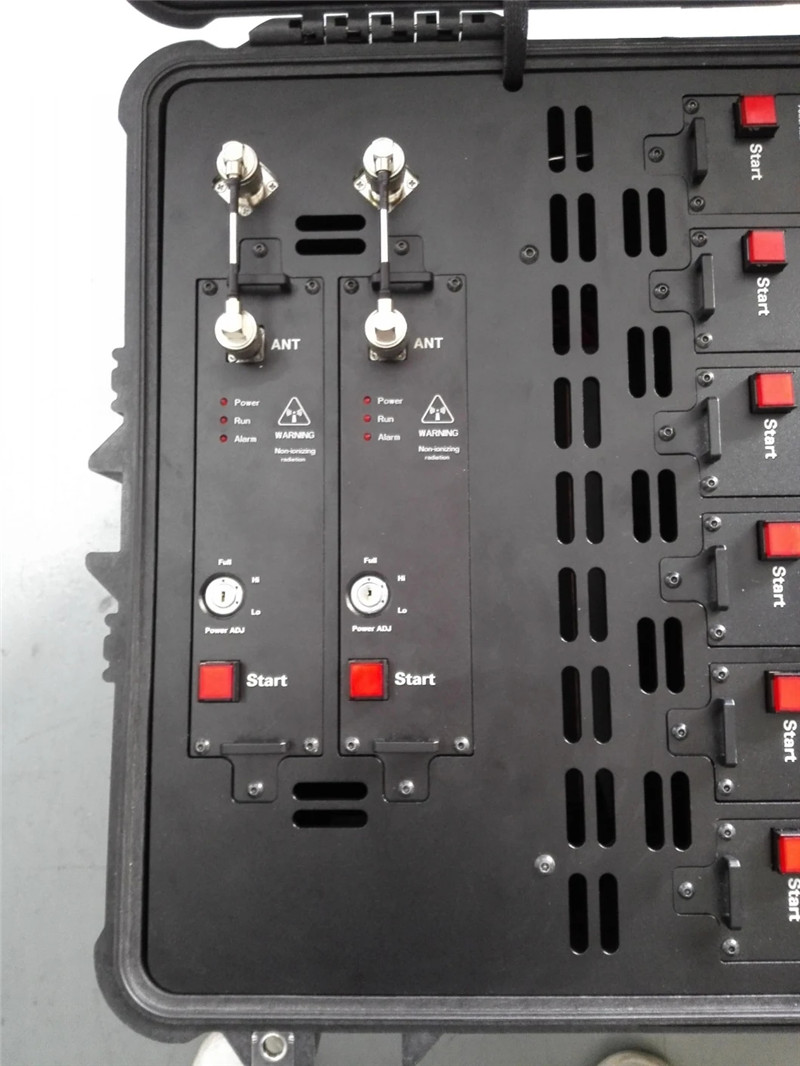

*Manual switch and remote control;
*Each channel module can start or close individually;
*Efficient frequency divide ensures the best interference effect on signals of different frequencies;
*Efficient power distribution minimizes power loss and improves efficiency; the power can be regulated as needed ( optional gear regulation);
*Military standard casing, which is anti-throw, pressure-resistant and durable;
*AC110-220V/External Battery;
*Built-in efficient cooling fan and cooling fin ensures the product work stably in a long service life
Main Parts
Host*1
Omni Antennas*8
Line Control*1
External Battery*1
Component Dimensions
| Name | L | W | H | Remarks |
| Host | 650 | 509 | 357 | Protrusions excluded |
| Antenna |
760 Φ35 |
|||
Other Parameters
| Net Weight | 39.4kg |
| External Battery Weight | 23.4kg |
| Total Weight | 90kg Aviation Case included |
| Ambient Temperature | -10℃~+50℃ |
| Relative Humidity | ≤80% |
| Power Consumption | ≤360W |
| Power Input | AC100~240V,DC27V |
| External Battery | 28.5V,95AH,,extrernal battery can used for 90 minutes .Limited charge voltage:32.85V |
| Antenna Parameters | Omni antennas gain: 5dBi |
| Switch Control | Manually |
| Equipment Chassis | Metallic Paint |
high capacity battery and portable backpack design make this jammer applicable to meeting halls,infantry,military security force,SWAT team,bomb squad,anti-terrorism units,anti-drag units,anti-riot force,the EOD team,checkpoints,
hostage negotiations,border control,etc...
