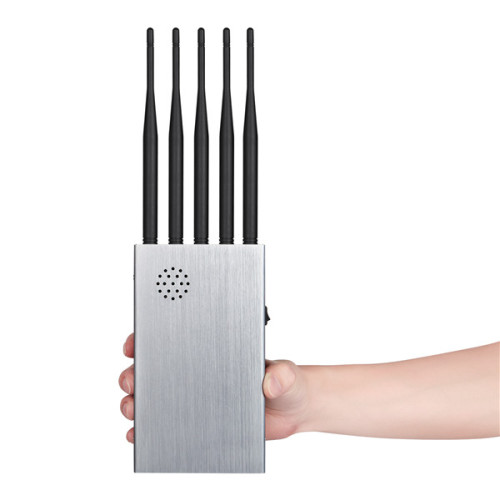

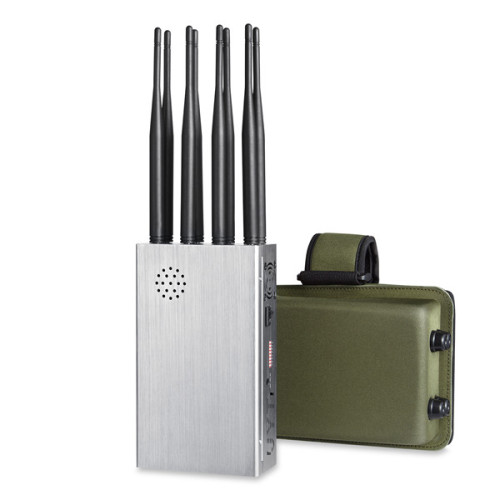

| Key technical specifications: Handheld Mobile Phone GSM 4G WIFI GPS Signal Jammer NT-CJP8P | |||
| Channel | Output port | Frequency range | Average out-putting power(±1dbm) |
| 1 | VHF/LoJack | 135-175MHz | 30dBm/1W |
| 2 | CDMA or GSM | 851-894 or 925-960MHz | 30dBm/1W |
| 3 | DCS or PCS | 1805-1880 or 1920-2000MHz | 30dBm/1W |
| 4 | Wi-Fi 2.4G/ 4G2300 | 2400-2500 or 2300-2500MHz | 30dBm/1W |
| 5 | 4G1 LTE | 700-803 or 738-821MHz | 30dBm/1W |
| 6 | GPSL1 | 1570-1610MHz | 30dBm/1W |
| 7 | 3G | 2110-2170MHz | 30dBm/1W |
| 8 | 4G Wimax | 2500-2690 or 2570-1690MHz | 30dBm/1W |
| option | GPSL2L3L4L5 | 1170-1390MHz | 30dBm/1W |
| 5G600 | 617-698MHz | 30dBm/1W | |
| 5G1500 | 1427-1518MHz | 30dBm/1W | |
| 5G3300/3500 | 3300-3600MHz | 30dBm/1W | |
| 5G3700 | 3600-3900MHz | 30dBm/1W | |
| WIFI5G | 5125-5850MHz | 30dBm/1W | |
| Power supply: adapter 50 to 60Hz AC (110-240V AC/12V DC) Car Charger: DC12V IN Built-in battery:7.4V/12000mAh Continue working: more than 2.5+ hours |
|||
| Dimensions: (length, width, height) 160*83*46mm (not include antenna) Length of antenna :166mm Gain:2.0dbi |
|||
| Packing size: 25*24*7cm Net weight: 1.3kg Gross weight: 1.5kg |
|||
| Total power: 8W Shielding radius: (2-20) meters at -75dBm Still depends on the strength signal in given area |
|||
| Warranty: one year from delivery date | |||
